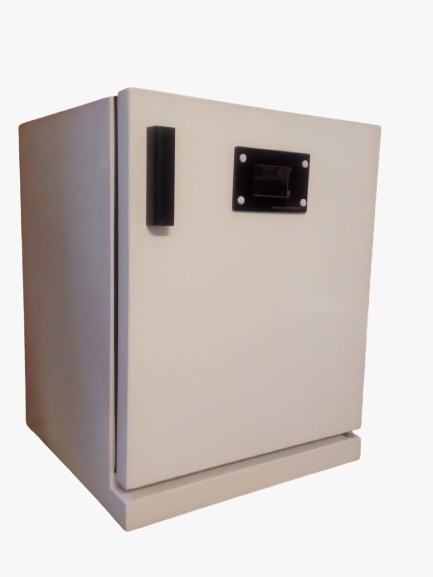

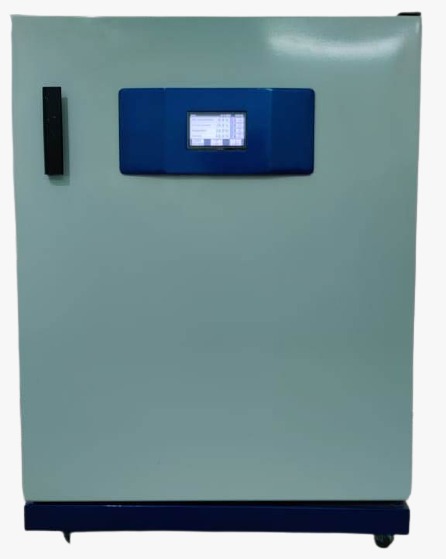

Why Choose BST Co2 Incubator?
- Most Cost Effective
- Highest Level of Reliability & Safety
- Maximum space saving
- Easy locking door System
- Best controlled environment for animal studies
- Microprocessor based controlling and Display of parameter
Features
- Fan less design which eliminates the chance of contamination from source.
- UV light to protect against bacterial contamination.
- Proprietary algorithm to maintain Co2 and O2 concentration.
- IR, Solid state sensor and PT 100 sensors.
- Inner chamber made up of Stainless Steel and outer powder coating.
- Four side heating to maintain temperature uniformity throughout the cabinet.
- Particle removal filters for gases,
- Florescence light for general purpose.
- Optional: Inbuilt multiple well reading microscope along with attached CCD camera
which can transfer images in every second to display or laptop attached laptop.
Technical Specification
- Microprocessor based control,
- Numbers of user define programme and serial data logger.
- Touch screen digital display for antechamber, main chamber parameters
- Proprietary algorithm to control oxygen, Co2, Humidity andTemperature.
- Solid state oxygen sensors, range 0.0 % -0.1 % to 20 %
- IR Co2 sensor, 0 to 15 %
- PT 100 Temperature sensor controlled by highly accurate PID to avoid overshot
of temperature.
- Circulation control, purging control, regeneration control, pressure control,
as well as self-diagnosis, power failure and re-start.
- Microprocessor based PID controller,
- Temperature accuracy ± 0.5° C,
- Temperature range +5° C to 60° C
- Microprocessor based controller for accurate percentage,
- IR co2 sensor ( reading in every 5 minutes)
- Co2 range varies from 0.00 % to 20 %.
- Co2 gas accuracy/ resolution is 0.1 %
- Microprocessor based controller for accurate percentage,
- IR co2 sensor ( reading in every 5 minutes)
- Co2 range varies from 0.00 % to 20 %.
- Inner Dimensions: D x W x H : 450 x 450 x 700 mm
- Outer Dimensions: D x W x H : 550 x 550 x 900 mm
- Capacity: 150 L
